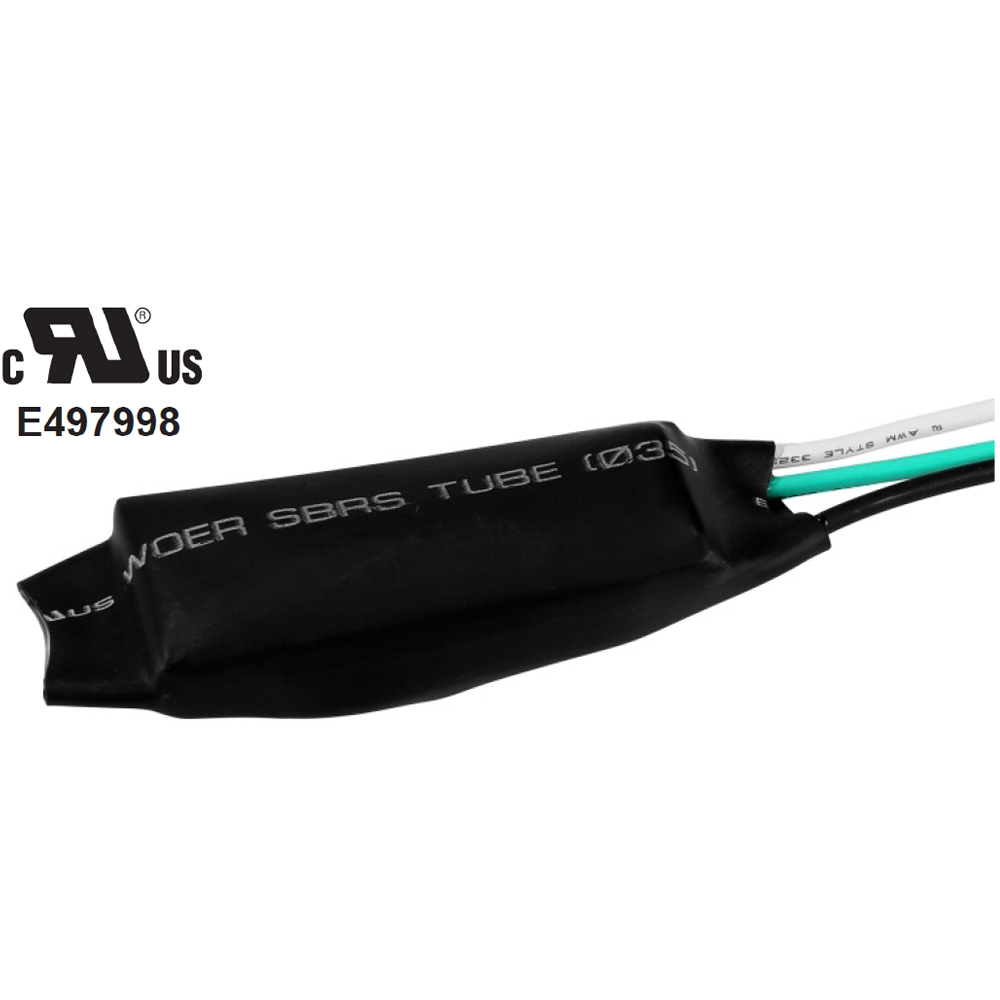

480V 20KA Surge Protection Device for Outdoor LED luminaires, LED Single Phase Surge Protector – Category C Outdoor Enclosure

Adapted to SSL outdoor lighting, the MST-SPD-480V surge protection device provides single phase protection for line/neutral, line/ground and neutral/ground in accordance with UL 1449. The MST-SPD-480Vvsmall size corresponds to the current design requirements for the new technology luminaires, likes a LED light engine in outdoor lighting. LED Surge Protector Spec: MST- SPD-480V 10-20KA/KV ratings Surge location rated Category C Operating ambient temperature: -40°C~ 85°C Storage Temperature and Humidity Range: -40°C~ 85°C 277-480VAC mains 16AWG/200mm Parallel without thermal fuse Maximum Continuous Operating Voltage & Max Discharge Current: 550 VAC, 20 kA(8/20μs) Agency Approval: UL1449, Type 5 Up to IP65 rated enclosure for wet locations Surge Protective Device Feature: Works with LED drivers, fluorescent ballasts, HID ballasts, and induction lighting ballasts. These devices protect Line-Neutral, Line-Ground, and Neutral-Ground in accordance with UL 1449. Thermally protected for field installation Low-profile model for slim or small spaces For use with 277-480V LED drivers 10KA/KV and 20KA/KV ratings Applications Outdoor and LED Lighting Roadway lighting Traffic lighting Digital signage Wash wall lighting Parking garage/lot lighting Flood lighting Tunnel lighting Street light Special Link: Buy 3pin Copper Wire Buy 120-277V Surge Protector Any question please contact us below: Your Full Name (required) Your Email (required) Your Phone (required) SKU Item Your Message Please fill in Choierled Please leave this field emptySubscribe to our newsletters! Get the latest updates on new products and upcoming sales Thank you for subscription! Please check the inbox to confirm it.
